Input parameters
| Form | Description |
|---|---|
| Splits number | Positive integer number greater than 0. |
| Split width | In meters. Positive float number greater than 0. |
| Distance between splits | In meters. Positive float number greater than 0. |
| Wave length | In nanometers. Positive float number greater than 0. |
| Viewing radius | In radians. Select interval to view chart. Positive float number greater than 0. |
| Steps count | Number of points to count functions values in them. The more steps, the better the accuracy, but the lower the performance. Positive integer number. |

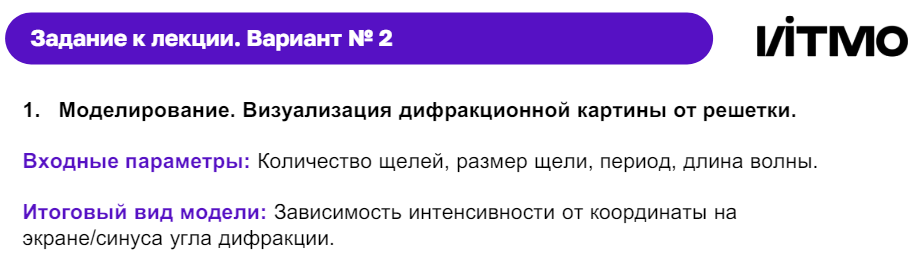

Main forms are designed for the technical task of modeling.
Optional settings are available in the form of a drop-down menu. They contain parameters that were not in the technical task, but that are involved in the construction of the graphics (more fine-tuning)
Explore the graphs conveniently and efficiently using the menu in the top right corner in plot form.
If you try to enter incorrect data, this field will return to the default value. Integer types are given with integer type even if a real number is entered
