Input parameters
| Form | Description |
|---|---|
| Frequency | In hertz. Positive float number greater than 0. |
| Amplitude | Positive float number greater than 0. |
| Phase | In radians. Float number. |
| Steps count | Number of points to count functions values in them. The more steps, the better the accuracy, but the lower the performance. Maximum: 100000. Positive integer number. |

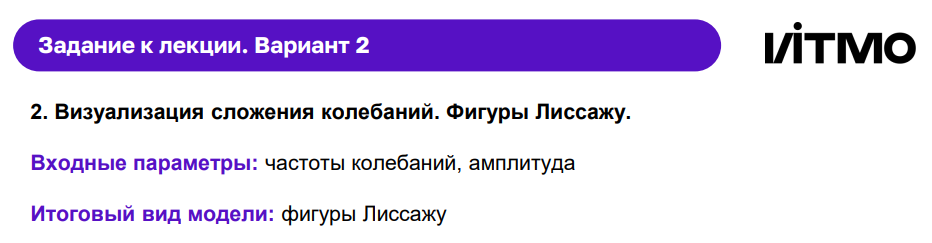

Main forms are designed for the technical task of modeling.
Optional settings are available in the form of a drop-down menu. They contain parameters that were not in the technical task, but that are involved in the construction of the graphics (more fine-tuning)
Explore the graphs conveniently and efficiently using the menu in the top right corner in plot form. Click at "Play" the bottom of chart to see the animation. "Pause" - stop animation. Also with the help of slidebar you can see individual frames at intervals.
If you try to enter incorrect data, this field will return to the default value. Integer types are given with integer type even if a real number is entered
